HERO 1

Primary tabs



By root_admin / On Mar.22.2013 / In COBALT BASED ROD / Width

properties:
HARDNESS HRC (HV)
50 -59 (548 - 718)
DENSITY g/cm3 (lb/in3)
8.67 (0.311)
MELTING RANGE oF (oC)
2,187 - 2,436 (1,197 - 1,335)

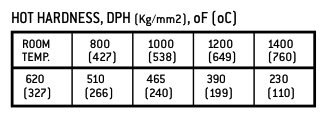

HOT HARDNESS, DPH (Kg/mm2), oF (oC)
CLICK HERE TO VIEW
technical:
DEPOSIT METHOD
Oxy-Acetylene & TIG (Gas Tungsten Arc)
FINISHING METHOD
Grinding
SPECIFICATIONS
AWS ERCoCr-C
resistance rating:
HIGH TEMP. PROPERTIES
Excellent
HIGH TEMP. HARDNESS
Excellent
CORROSION RESIST.
Good
EROSION RESIST.
Good
ABRASION RESIST.
Excellent
GALLING RESIST.
Good
IMPACT RESIST.
Moderate
MECH. WEAR RESIST.
Excellent
CHEMICAL WEAR RESIST.
Good

HERO 1 retains its hardness at temperatures exceeding 1400ºF (760ºC) making it an excellent choice for high temperature, abrasive applications such as pump sleeves, expeller screws and drill heads. The high volume of chromium carbide locked in its cobalt matrix makes HERO 1 stubbornly resist abrasion and solid particle erosion, and it withstands corrosion.

APPLICATIONS

Pump sleeves, rotary seal rings, wear pads, valve seats, expeller screws, seaming rolls, bearing sleeeves, drill heads & crushers.

TECHNICAL

- Crack sensitive; care should be taken to minimize cooling stresses

- Bonds well to all weldable steels and stainless

- Resistant to oxidizing

- Corrodes mainly by a pitting mechanism and not by general mass loss in seawater and chloride solutions. The typical electrode potential in sea water at room temperature is approximately -0.4 V (SCE).

AVAILABLE SIZES

Diameter

1/8” (3.2 & 3.4mm), 5/32” (4.0mm), 1/4” (6.4mm), 5/16” (8.0mm)

Length

36” Standard (custom lengths available upon request)

DOWNLOAD AND VIEW PRODUCT MSDS
