HERO 21

Primary tabs



By root_admin / On Mar.25.2013 / In COBALT BASED ROD / Width

properties:
COMPOSITION (wt%)
Co. Bal, Cr 28.0%, W ---, C 0.25%, Mo 5.0%, Ni <3.0%, Fe <3.0%,
Si <1.5%
HARDNESS HRC (HV)
26 - 38 (287 - 425)
DENSITY g/cm3 (lb/in3)
8.29 (0.299)
MELTING RANGE oF (oC)
2,387 - 2,598 (1,308 - 1,426)

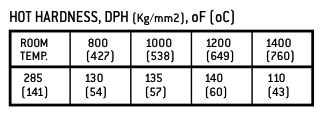

HOT HARDNESS, DPH (Kg/mm2), oF (oC)
CLICK HERE TO VIEW
technical:
DEPOSIT METHOD
TIG (Gas Tungsten Arc)
FINISHING METHOD
Machining
SPECIFICATIONS
AWS -
resistance rating:
HIGH TEMP. PROPERTIES
Excellent
HIGH TEMP. HARDNESS
Good
CORROSION RESIST.
Excellent
EROSION RESIST.
Good
ABRASION RESIST.
Moderate
GALLING RESIST.
Excellent
IMPACT RESIST.
Excellent
MECH. WEAR RESIST.
Excellent
CHEMICAL WEAR RESIST.
Good

HERO 21 is formulated to withstand impact, making it a good choice forging and hot stamping die material. This alloy is also used on steam and fluid control valve bodies and seats due to its tenacious resistance to corrosion, galling and cavitation erosion. HERO 21 has very good work hardening properties and displays superior metal-to-metal sliding wear resistance. (This alloy is not recommended for severe hard particle abrasion.) Apply using the TIG deposit method.

APPLICATIONS

Hot stamping & forging dies, hot shears, pump impellers, rings, chemical & petrochemical valves, high temperature & pressure valves.

TECHNICAL

- Apply using the TIG deposit method.

- Bonds well to all weldable steels and stainless

- Resistant to oxidizing & reducing gaseous atmospheres up to 2,100 oF (1,150 oC)

- Corrodes mainly by a pitting mechanism and not by general mass loss in seawater and chloride solutions. The typical electrode potential in sea water at room temperature is approximately -0.3 V (SCE).

AVAILABLE SIZES

Diameter

1/8” (3.2 & 3.4mm), 5/32” (4.0mm), 1/4” (6.4mm), 5/16” (8.0mm)

Length

36” Standard (custom lengths available upon request)

DOWNLOAD AND VIEW PRODUCT MSDS
