HERO 12

Primary tabs



By root_admin / On Mar.22.2013 / In COBALT BASED ROD / Width

properties:
COMPOSITION (wt%)
Co. Bal, Cr 30.0%, W 8.0%,
C 1.6%, Mo <0.1%, Ni <3.0%,
Fe <3.0%, Si <2.0%
HARDNESS HRC (HV)
46 -52 (437 - 593)
DENSITY g/cm3 (lb/in3)
8.49 (0.307)
MELTING RANGE oF (oC)
2215 - 2463 (1213 - 1351)

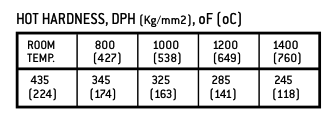

HOT HARDNESS, DPH (Kg/mm2), oF (oC)
CLICK HERE TO VIEW
technical:
DEPOSIT METHOD
Oxy-Acetylene & TIG (Gas Tungsten Arc)
FINISHING METHOD
Machining
SPECIFICATIONS
AWS-ERCoCr-B
resistance rating:
HIGH TEMP. PROPERTIES
Excellent
HIGH TEMP. HARDNESS
Excellent
CORROSION RESIST.
Good
EROSION RESIST.
Good
ABRASION RESIST.
Excellent
GALLING RESIST.
Good
IMPACT RESIST.
Moderate
MECH. WEAR RESIST.
Excellent
CHEMICAL WEAR RESIST.
Good

HERO 12 is a machinable hardfacing alloy with exceptional high-heat wear and abrasion resistance. This alloy is used for facing the cutting edges of long knives in the wood, chemical, plastics, carpet and paper industries. With a higher tungsten content, HERO 12 has better high temperature properties than HERO 6. Effective up to temperatures of 1300ºF (700ºC), it is also a good choice for hardfacing engine valves.

APPLICATIONS

Wood cutting tools, knives, scissor blades, shear edge, saw teeth, industrial knives, guide bars, pinch rollers, push rods, extrusion dies & engine valves.

TECHNICAL

- Bonds well to all weldable steels and stainless

- Corrodes mainly by a pitting mechanism and not by general mass loss in seawater and chloride solutions. The typical electrode potential in sea water at room temperature is approximately -0.3 V (SCE).

AVAILABLE SIZES

Diameter

1/8” (3.2 & 3.4mm), 5/32” (4.0mm), 1/4” (6.4mm), 5/16” (8.0mm)

Length

36” Standard (custom lengths available upon request)

DOWNLOAD AND VIEW PRODUCT MSDS
