HERO 694

Primary tabs



By root_admin / On Mar.25.2013 / In COBALT BASED ROD / Width

properties:
COMPOSITION (wt%)
Co. Bal, Cr 29.0%, W 18.5%,
C 1.0%, Mo -, Ni 5.0%, Fe <3.0%,
Si <1.0%
HARDNESS HRC (HV)
48 -54 (320 - 440)
DENSITY g/cm3 (lb/in3)
(0.326)
MELTING RANGE oF (oC)
2,257 - 2,361 (1,236 - 1,294)

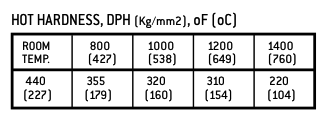

HOT HARDNESS, DPH (Kg/mm2), oF (oC)
CLICK HERE TO VIEW
technical:
DEPOSIT METHOD
TIG (Gas Tungsten Arc)
FINISHING METHOD
Grinding
SPECIFICATIONS
PWA 694
resistance rating:
HIGH TEMP. PROPERTIES
Excellent
HIGH TEMP. HARDNESS
Excellent
CORROSION RESIST.
Good
EROSION RESIST.
Excellent
ABRASION RESIST.
Good
GALLING RESIST.
Good
IMPACT RESIST.
Moderate
MECH. WEAR RESIST.
Good
CHEMICAL WEAR RESIST.
Good

HERO 694 has the highest tungsten content of all the cobalt based hardfacing alloys. This ensures excellent high temperature properties and hardness making it the logical choice for hardfacing turbine blade interlocking surfaces. HERO 694 is also uncommonly tough in applications where erosion, fine particle abrasion and cavitation are challenges.

APPLICATIONS

Gas turbine parts.

TECHNICAL

- Moderate impact resistance

- Apply using the TIG deposit method

AVAILABLE SIZES

Diameter

1/8” (3.2 & 3.4mm), 5/32” (4.0mm), 1/4” (6.4mm), 5/16” (8.0mm)

Length

36” Standard (custom lengths available upon request)

DOWNLOAD AND VIEW PRODUCT MSDS
